APQ Automotive Bolt-Down Fuse
Specifications
Rated voltage: 70V DC
Rated current: 100A ~ 500A
Breaking capacity: 2000A@70VDC
Product Certification: UL
Standard
·ISO 20934
·UL 248-13
Product features
·Reliable clearing of DC fault currents
·Low watt losses , high efficiency
·Ultra-compact size and power density
·High safety margin
·PA66 nylon shell is resistant to high temperatures
·Provide up to 70VDC voltage protection
Applications
·All kinds of vehicles and ships
·Industrial equipment
·Low-voltage battery system
·High-power inverter
·Charger
·DC busbar

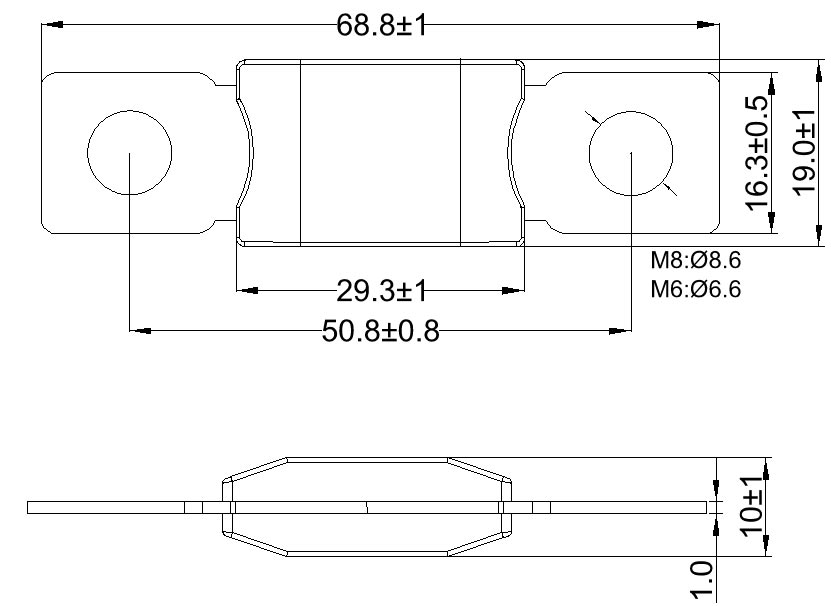

Product Size(mm)
Material Details
No | Name | Materials |
1 | Shell | PA66 |
2 | Termination | Copper tin-plated |
3 | Element | Copper tin-plated |
Product Parameters
Part No number | Rated Current | Rated Voltage | Breaking capacity | Volt-drop (mV) | Cold Resistance (mΩ) | I²T (A²sec) @10In | Safety Approvals |
| |||||||
APQ3200808 | 200A | 80V
| 2000A@70VDC
| 80 | 0.26 | 222400 | ● |
APQ3200808 | 225A | 87 | 0.22 | 327037 | ● | ||
APQ3200808 | 250A | 87 | 0.20 | 441250 | ● | ||
APQ3200808 | 300A | 46 | 0.15 | 512100 | ● | ||
APQ3200808 | 350A | 47 | 0.13 | 738675 | ● | ||
APQ3200808 | 400A | 47 | 0.12 | 1068000 | ● | ||
APQ3200808 | 450A | 52 | 0.11 | 1381050 | ● | ||
APQ3200808 | 500A | 54 | 0.09 | 1900000 | ● |
Note: ● Denotes for certification approved; ○ Denotes for pending certification
