5x20mm Slow-blow Glass fuse 250VAC
Specifications
Rated voltage: 250VAC
Rated current: 100mA~20A
Breaking capacity: 100A@250V AC
Product Certification: UL
Standard
·UL 248-1
·UL 248-14
Product features
·Slow-blow, glass body, surge pulse protection
·RoHS compliant and lead-free
·In accordance with UL Standard 248-14
·Available in cartridge and axial lead format and with various forming dimensions
Applications
·Consumer Electronics
·Home Appliances
·Lighting Equipment
·Industrial Instruments
·Communications & Networks
·Automotive Electronics

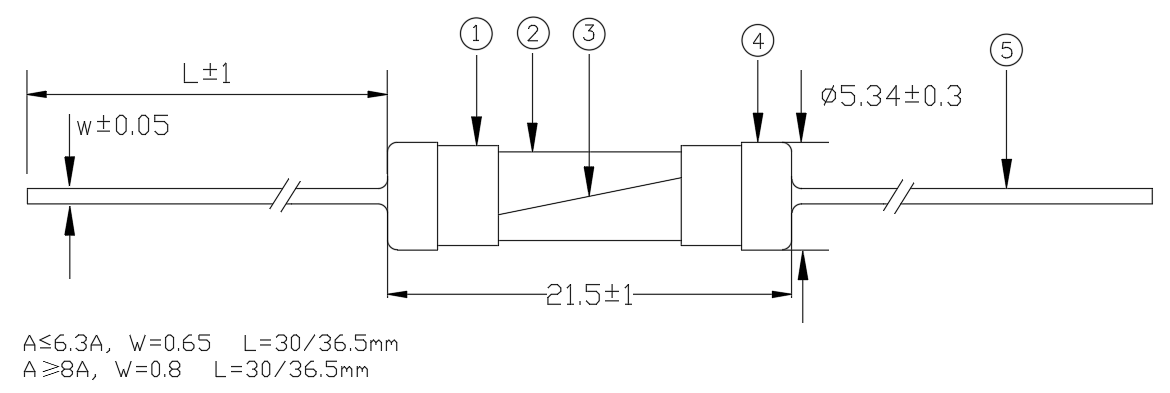

ProductSize(mm)
Material Details
|
NO. |
Part Name |
Material |
|
① |
Cap |
Nickel Plated Brass |
|
② |
Body |
Glass |
|
③ |
Fuse element |
Alloy |
|
④ |
Lead cap |
Nickel Plated Brass |
|
⑤ |
Lead wire |
Sn plated Cu |
ProductParameters
|
Part No |
Rated Current |
Rated Voltage |
Breaking Capacity |
I²T A²s |
Safety Approvals |
|
|
|
|||||
|
5M/5MP0100 |
100mA |
125V 250V |
35A@250V AC (200mA~3.15A)
10KA@125V AC (200mA-20A)
100A@250V AC (4A~10A)
200A@250V AC (10A~20A)
|
0.0080 |
● |
○ |
|
5M/5MP0125 |
125mA |
0.0100 |
● |
○ |
||
|
5M/5MP0160 |
160mA |
0.0180 |
● |
○ |
||
|
5M/5MP0200 |
200mA |
0.0295 |
● |
○ |
||
|
5M/5MP0250 |
250mA |
0.0513 |
● |
○ |
||
|
5M/5MP0315 |
315mA |
0.10 |
● |
○ |
||
|
5M/5MP0400 |
400mA |
0.19 |
● |
○ |
||
|
5M/5MP0500 |
500mA |
0.62 |
● |
○ |
||
|
5M/5MP0630 |
630mA |
0.54 |
● |
○ |
||
|
5M/5MP0750 |
750mA |
1.12 |
● |
○ |
||
|
5M/5MP0800 |
800mA |
1.16 |
● |
○ |
||
|
5M/5MP1100 |
1A |
2.18 |
● |
○ |
||
|
5M/5MP1125 |
1.25A |
3.40 |
● |
○ |
||
|
5M/5MP1160 |
1.6A |
7.37 |
● |
○ |
||
|
5M/5MP1200 |
2A |
8.2 |
● |
○ |
||
|
5M/5MP1250 |
2.5A |
8.5 |
● |
○ |
||
|
5M/5MP1300 |
3A |
9.00 |
● |
○ |
||
|
5M/5MP1315 |
3.15A |
15.74 |
● |
○ |
||
|
5M/5MP1400 |
4A |
25 |
● |
○ |
||
|
5M/5MP1500 |
5A |
38 |
● |
○ |
||
|
5M/5MP1630 |
6.3A |
60 |
● |
○ |
||
|
5M/5MP1700 |
7A |
103 |
● |
○ |
||
|
5M/5MP2800 |
8A |
158 |
● |
○ |
||
|
5M/5MP2100 |
10A |
274 |
● |
○ |
||
|
5M/5MP2120 |
12A |
285 |
○ |
● |
||
|
5M/5MP2120 |
12.5A |
292 |
○ |
● |
||
|
5M/5MP2150 |
15A |
703 |
○ |
● |
||
|
5M/5MP2200 |
20A |
1374 |
○ |
● |
||
Note: ●Denotes for certification approved ; ○Denotes for pending certification
